Description

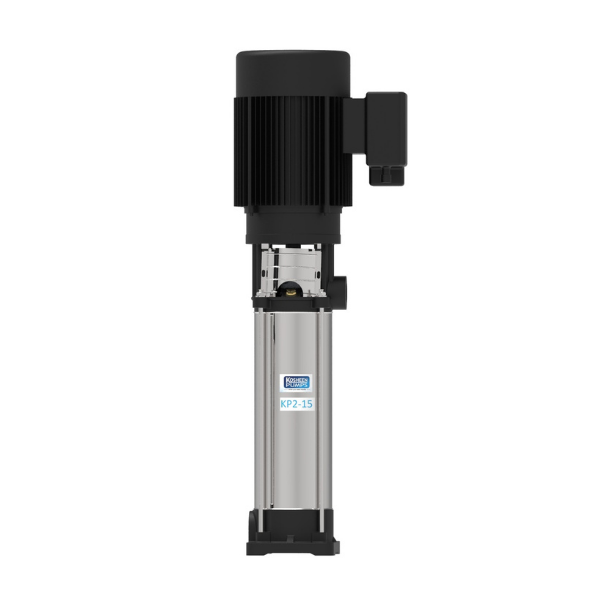

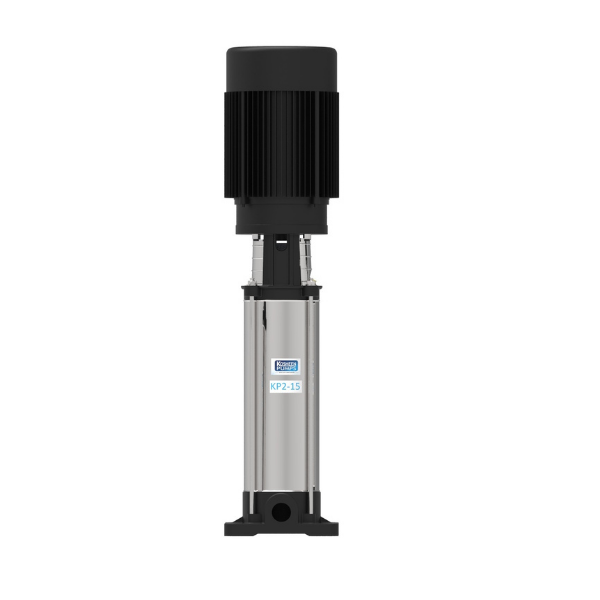

Vertical Inline High Pressure Pump – FG2-15 (BSBD)
FG2-15 Vertical Inline High Pressure Pump is specially designed for 1000 LPH to 1500 LPH RO Plants. It provides consistent high pressure required for efficient water purification and smooth operation in RO and water treatment systems.
Made with strong 304 stainless steel parts, this pump is highly resistant to corrosion and promises dependable performance even in tough operating conditions.
Its compact vertical inline design allows for direct installation into the pipeline, making setup easy and saving valuable space. The FG2-15 pump is meant for continuous operation, providing stable performance for water treatment, filtration, and pressure boosting tasks.
With its durable construction and effective hydraulic design, this pump is a great choice for RO systems that require reliable pressure and a long service life.
Motor Single Phase 2 H.P/1.5kw.
Applications
The FG2-15 Vertical Inline High-Pressure Pump is widely used in:
- Reverse Osmosis (RO) Plants
- Water Purification Systems
- Industrial Water Treatment Plants
- Pressure Boosting Systems
- Commercial Filtration Units
- Water Circulation Systems
- Small Industrial Process Applications
Flowguards manufactures SS304 Vertical High-Pressure Pumps for RO plants, ensuring stable pressure and reliable water flow for purification systems.
Key Features
- Compact Vertical Inline Design
- High-Pressure Performance for RO Systems
- SS304 Stainless Steel Hydraulic Parts
- Energy Efficient Operation
- Low Noise and Smooth Running
- Corrosion-Resistant Construction
- Reliable Continuous Duty Performance
- Easy Installation and Maintenance
Technical Specifications
| Model | FG2-15 |
| Flow Rate | 0 – 86.5 L/min |
| Maximum Head (Flow Height) | 143.7 m |
| Voltage | 220 V |
| Frequency | 50 Hz |
| Power Factor (PF) | 0.98 |
| Pump Material | Stainless Steel 304 |
Material of Construction
The FG2-15 pump from Flowguards is manufactured using durable materials to ensure long-lasting performance and reliable operation.
| Pump Casing | Cast Iron |
| Impeller | Stainless Steel 304 |
| Diffuser | Stainless Steel 304 |
| Pump Shaft | Stainless Steel 304 |
| Mechanical Seal | Silicon Carbide / Carbon / Viton |
| Motor Frame | Aluminum (PDC) |
| Cooling Fan | Engineering Plastic |
Why Choose Flowguards Pumps
Flowguards is a trusted manufacturer of high-quality industrial pumps. We manufacture Vertical Inline High Pressure Pumps and Horizontal Pumps with flow capacities ranging from 2–90 m³/hr, making them suitable for various water treatment and industrial applications.
Our pumps are designed to deliver high efficiency, consistent pressure, and long operational life, making them a reliable choice for RO plant manufacturers and water treatment professionals.
