Description

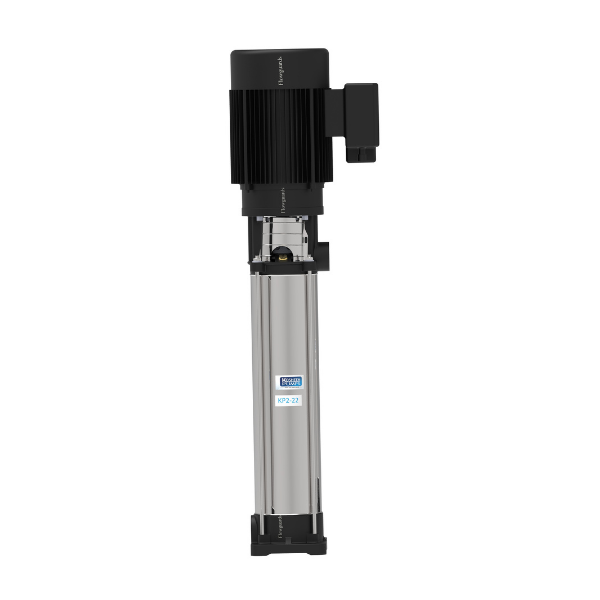

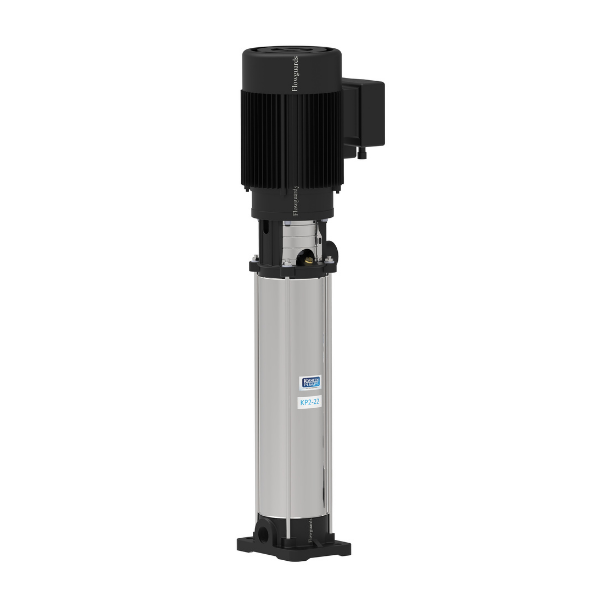

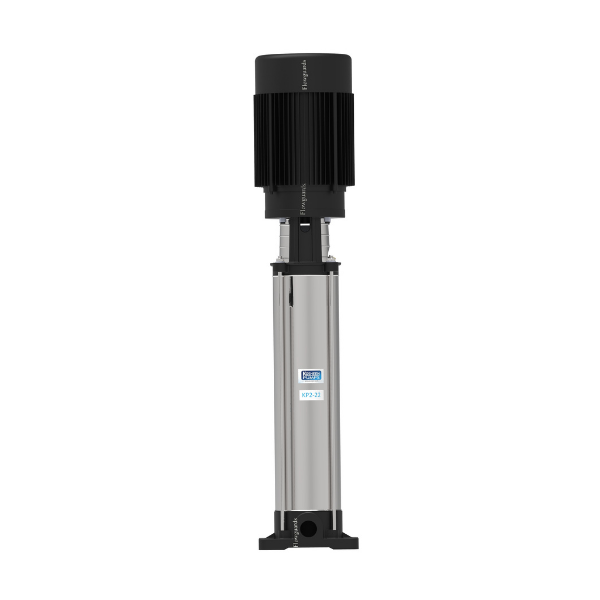

Vertical Inline High Pressure Pump FG 2-22
The FG 2-22 Vertical Inline High-Pressure Pump from Flowguards delivers stable pressure and smooth water flow for 1500 LPH RO plants and water purification systems. This pump is made with high-quality stainless steel parts that offer strength, resistance to corrosion, and a long lifespan.
Flowguards focuses on making Vertical Inline high-pressure pumps for RO plants and industrial water treatment systems. The FG 2-22 model maintains consistent pressure, which is essential for effective filtration and purification.
Its compact vertical inline design allows for direct installation into the pipeline. This saves space and simplifies the system setup. Due to its reliable performance and durable build, this pump is commonly used in RO plants and water treatment applications.
Motor Single Phase 3 H.P/2.2kw.
Applications
The FG 2-22 pump is suitable for many water treatment and filtration systems, including:
-
1500 LPH RO Plants
-
Water Purification Systems
-
Industrial Water Treatment Plants
-
Pressure Boosting Systems
-
Commercial Filtration Systems
-
Water Circulation Systems
We manufacture SS304 Vertical High-Pressure pumps for RO plants, providing reliable pressure and smooth water flow.
Technical Data
| Specification | Details |
|---|---|
| Model | FG 2-22 |
| Flow Rate | 0 – 86 L/min |
| Maximum Head (Flow Height) | 208.7 m |
| Voltage | 216 – 230 V |
| Frequency | 50 Hz |
| Power Factor (PF) | 0.93 |
| Material | Stainless Steel |
Material of Construction
| Pump Component | Material |
|---|---|
| Pump Casing | Cast Iron |
| Impeller | Stainless Steel 304 |
| Diffuser | Stainless Steel 304 |
| Pump Shaft | Stainless Steel 304 |
| Mechanical Seal | Silicon Carbide / Carbon / Viton |
| Motor Frame | Aluminum (PDC) |
| Cooling Fan | Engineering Plastic |
About Flowguards: we are indian manufaturer
Flowguards manufactures reliable pump solutions for RO plants and water treatment systems. We manufacture Vertical Inline High pressure pumps and Horizontal Pumps with flow capacities from 2–90 m³/hr, suitable for different industrial and water purification applications.
Our pumps are designed to provide stable pressure, efficient performance, and long service life, making them a trusted choice for RO plant manufacturers.
